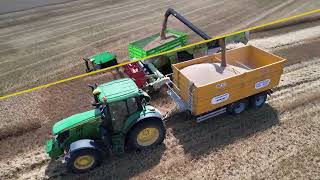

Three-Way Tipper "Dunav"

Three-Way Tipper "Dunav"

Series RNT

Information

For agricultural or construction bulk loads transportation. For feeding seed drills and fertilizers.

Equipment

Operating components:

  • built- in spiral conveyer with hydraulic turning;
  • 3 sides unloading with hydraulic control.

Securing: ridged chassis and frame, in-build axles and integrated elements of well known.

Three-Way Tipper "Dunav", RNT

Technical data

Technical characteristic RNT 6RNT 14RNT 14 CRNT 14 TRNT 20RNT 26RNT 30RNT 45
Power requirement HP 60 100 100 100 130 150 180 200
Payload kg 6 000 10 000 10 000 10 000 14 000 17 000 22 000 33 000
Owned weight kg 2 550 3 450 3 450 3 450 6 111 7 600 7 920 12 000
Total weight kg 8 550 13 450 13 450 13 450 20 111 24 600 29 920 45 000
Overall dimensions - length m 4,59 6,2 6,2 6,2 8,3 9,754 9,754 11,080
Overall dimensions - width m 2,33 2,33 2,33 2,33 2,42 2,42 2,42 2,45
Overall dimensions - base with standart + additional lids m 1,58/2,08 1,8 / 2,4 1,8 / 3,3 1,8 / 2,4 2,0 / 2,6 2,0 / 2,6 2,0 / 2,8 3,9
Load room dimensions - length m 3,32 4,25 4,25 4,25 5,888 6,672 6,672 8,95
Load room dimensions - width m 2,12 2,22 2,22 2,22 2,316 2,316 2,316 2,4
Load room dimensions - base with standart + additional lids m 0,5/1,0 0,6 / 1,2 0,6 / 2,0 0,6 / 1,2 0,8 / 1,4 0,8 / 1,4 0,8 / 1,6 0,8;0,8;0,4 / 2,0
Carriage volume m3 6,85 11,3 13,2 11,3 18 22 25 42
Loading height m 1,1 1,2 1,2 1,2 1,4 1,4 1,4 1,55
Suspension, axles number pcs 1 2 2 2 - tandem 2 3 3 4
Tire size   400 / 60 - 15,5" 18 / 22 PR 400 / 60 - 15,5" 18 / 22 PR 400 / 60 - 15,5" 18 / 22 PR 400 / 60 - 15,5" 18 / 22 PR 400 / 60 - 22,5" : 425 / 65 - 22,5" 400 / 60 - 22,5" : 425 / 65 - 22,5" 400 / 60 - 22,5" : 425 / 65 - 22,5" 425/65-22,5''
Rim size   13,0 x 15,5 13,0 x 15,5 13,0 x 15,5 13,0 x 15,5 11,75 x 22,5" : 13 х 22,5 11,75 x 22,5" : 13 х 22,5 11,75 x 22,5" : 13 х 22,5 13 х 22,5
Unloading options   three sides three sides three sides three sides three sides three sides three sides three sides
Container lifting angle - aside deg  45 45 45 45 45 45 45 45
Container lifting angle - back deg  45 45 45 45 45 45 45 45
Pressure needed for unloading of maximal load bar  200 200 200 200 200 200 200 200
Brake system- work   double contour double contour on both axles double contour on both axles double contour on both axles double contour on both axles double contour on all axles double contour on all axles double contour on all axles
Brake system - park   mechanic, handbrake mechanic, handbrake mechanic, handbrake mechanic, handbrake mechanic, handbrake mechanic, handbrake mechanic, handbrake mechanic, handbrake
Maximum transport speed km/h  40 40 40 40 40 40 40 40
Internal diameter of the draw bar mm Ø 40 Ø 40 Ø 40 Ø 40 Ø 50 Ø 50 Ø 50 Ø 50
